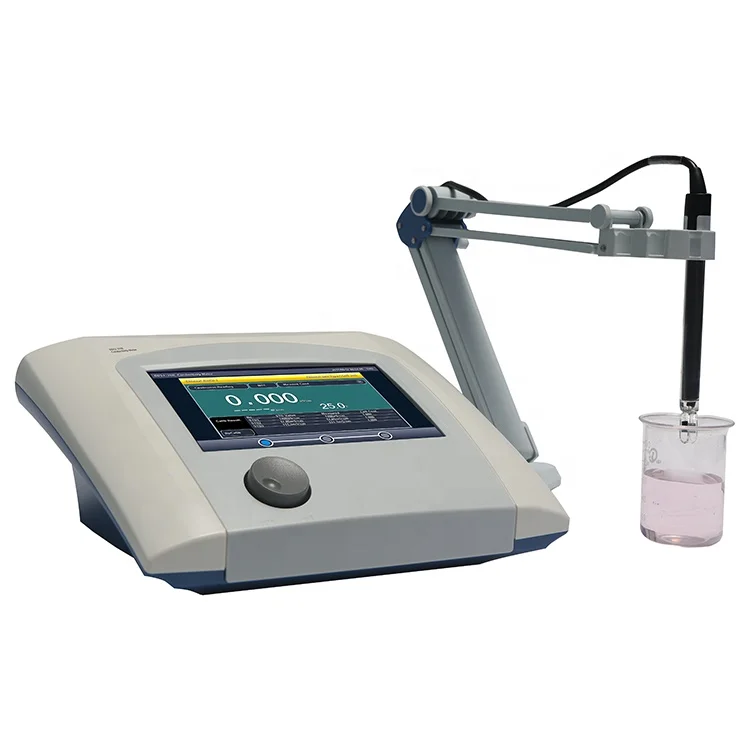

EC600L benchtop laboratory conductivity Meter TDS meter

Parameters

Product Description

Features

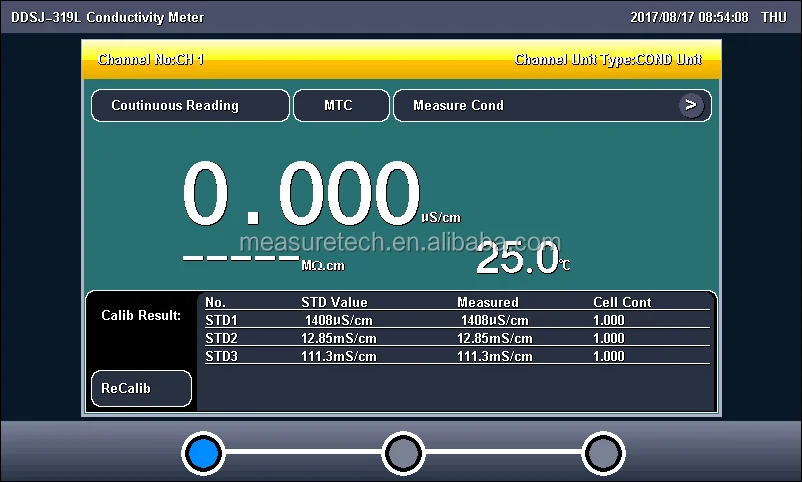

* Color High contrast LCD touchscreen, 7.0 inches.
* Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
* Multi-reading feature allows auto-read, timed-read and continuous-read.
* Automatic/Manual temperature compensation ensures accurate results.
* Data Storage 1000 sets for each parameter (GLP-compliant).
* Data analysis feature helps user review, compare and recalculate results.
* Support for USB or RS-232 communication.
* Reset feature automatically resumes all settings back to factory default options.
* IP54 waterproof.
* 1-5 points calibration with Standard Recognition.
* Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
* Temperature compensation type (none, linear, pure water).

Model			EC600L
Parameters			EC/Temp.(Resistivity/TDS/Sal.)
Conductivity	Range	0.000 μS/cm to 3000 mS/cm
		Resolution	0.001 μS/cm minimum, various with range selection
		Accuracy	±0.5% FS
		Reference Temperature	5, 10, 15, 18, 20, 25 ºC
		Calibration Points	Up to 5
		Standard Recognition	146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm
Resistivity	Range	5.00 Ω·cm~100.00 MΩ·cm
		Resolution	0.01 Ω·cm minimum
		Accuracy	±0.5% FS
TDS	Range	0.000 mg/L~1000 g/L
		Resolution	0.001ppm minimum, changed with range
		Accuracy	±0.5%FS
Salinity	Type	NaCl%
		Range	(0.00~8.00)%
		Resolution	0.01%
		Accuracy	±0.1%
Temperature	Range	-5 to 130 ºC
		Unit	ºC
		Resolution	0.1
		Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
		Reading Prompts	Reading, Stable, Locked
		Temp. Compensation	ATC, MTC
Data management	Data Storage	1000 Groups
		GLP Features	Yes
		Log Management	Yes

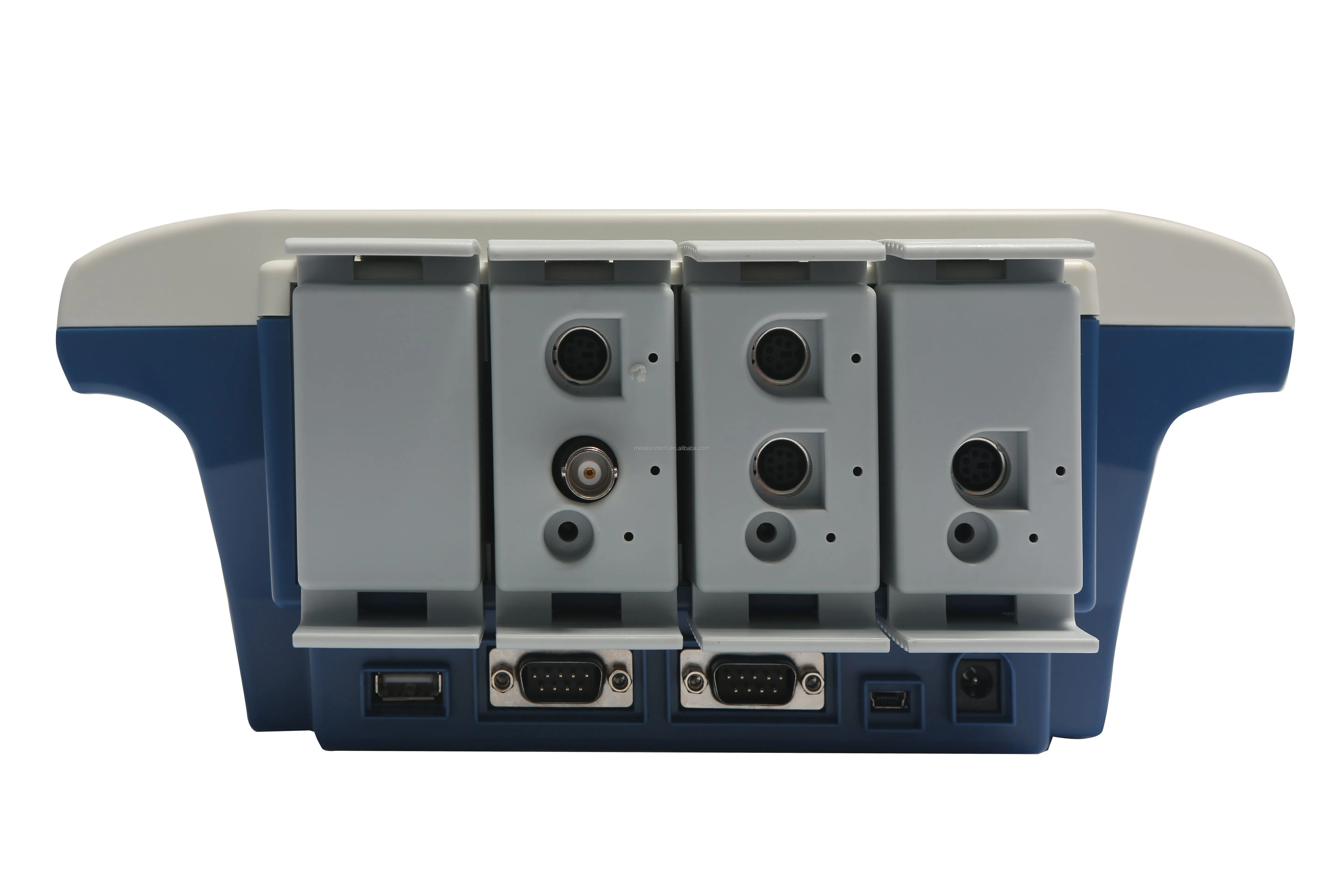

Inputs	Temp. Probe	6-pin Mini-DIN
Inputs		Conductivity Probe	8-pin Mini-DIN
Outputs	USB, RS 232	USB 2.0 flash memory device, printer, PC
Display options	Backlight	Yes
		Auto Shutdown	1~60 min, off
		IP Rating	IP54
		Date and Time	Yes
General	Power	AC Adapter, 100-240V AC input, DC24V output
		Dimensions	280×280×130 mm
		Weight	2500g (5.51 lb)
